A Sip / Puff solution that securely attaches to table tops, beds and wheelchairs

Sip/Puff solutions are ideal for people who have limited or no motor capability to operate switch activated devices, including computers, augmentative communication devices, adapted toys, environmental control systems and devices accessed or controlled by scanning.

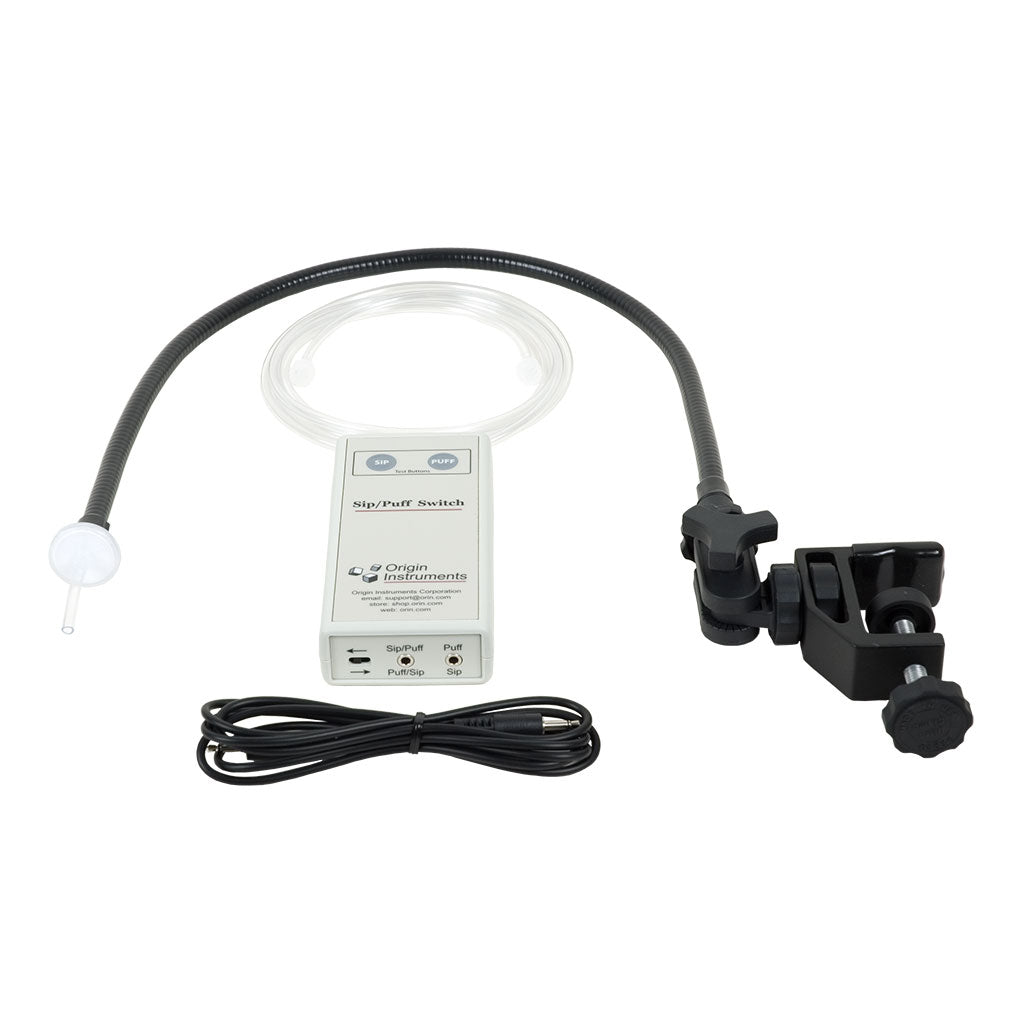

This solution combines the Sip/Puff Switch and a Gooseneck on a Universal Mount that securely attaches to table tops, beds and wheelchairs.

The filtered mouthpiece is replaceable and a thin, pliable connecting tube interfaces the mouthpiece to the Sip/Puff Switch with a simple twist connector.

Sip/Puff Switch

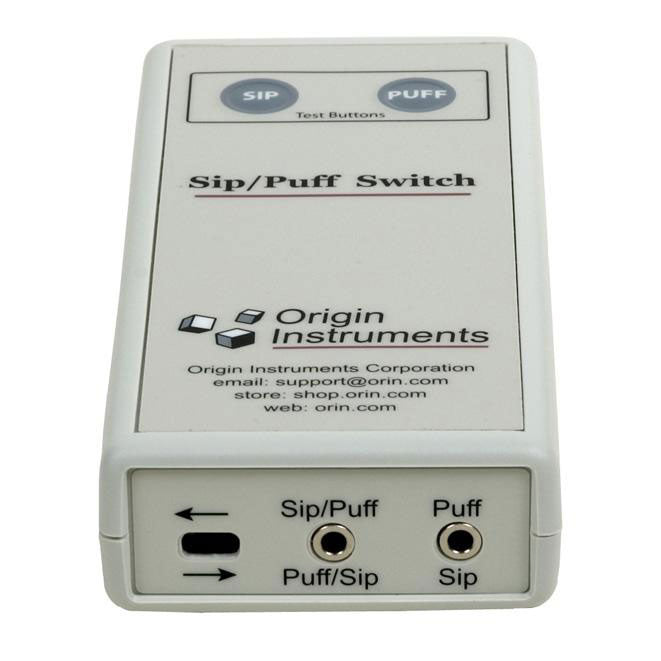

The Sip/Puff Switch translates sips and puffs into independent switch closures. The Sip/Puff Switch has two (2) 3.5mm ports for connecting two standard mono cables or a single stereo cable and has integrated test buttons to assist in application testing.

The two pressure switches have normally open contacts that close when the user sips or puffs on an attached mouthpiece. These low voltage and low current signalling switches are designed for connection to an electronic device – they are not designed to switch power loads.

Sip and puff pressure thresholds are approximately 7.5 cm (3-inches) water column below and above ambient pressure
Switches carry 40-milliamps at AC/DC 30 volts or less with a resistive load, for millions of cycles
Dual pressure switch has two 3.5-mm (1/8-inch headphone) connectors. One connector provides both sip and puff events with a stereo cable
Simple slide switch can be used to change the sense of Sip and Puff signals on the stereo connector
Passive pressure switches do not require batteries or external power
Enclosure has integrated “sip” and “puff” test switches

Gooseneck Mount

Strong, lightweight and versatile, the Sip/Puff Gooseneck features a Universal Mount that securely attaches to table tops, beds and wheelchairs. The flexible steel gooseneck and the ball-and-socket mount enable easy and secure mouthpiece positioning.

The flexible shaft is delivered with an adjustable mechanical mounting arm that is articulated in four degrees of freedom. The mounting arm includes an integrated adjustable clamp that supports hard-mounting to table tops, shelves, or cylindrical rods of up to 38 mm diameter (1.5-inches). The flexible shaft incorporates a standard 1/4-20 thread for use with the delivered universal mount, tripods or other special mounting hardware.

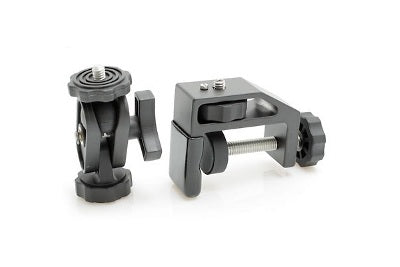

The universal mounting arm is composed of two separate pieces, a ball and joint assembly and a clamp. The ball and joint assembly aligns with the clamp using an orientation pin that fixes it in one of eight 45-degree orientations

The single axis joint can be locked in one of thirteen positions (15-degree increments) over a range of 180-degrees as shown in the illustration.

The ball and socket provides additional capability to fix the universal mount at almost any angle. The clamp v-groove facilitates attaching the clamp to a cylindrical object. Clamps with larger openings are available.
