Sip-Puff Breeze with Headset

The light weight wearable USB sip / puff switch for users with limited or no motor capability

Sip/Puff solutions are ideal for people who have limited or no motor capability to operate switch activated devices, including computers, augmentative communication devices, adapted toys, environmental control systems and devices accessed or controlled by scanning.

Sip/Puff Breeze is an advanced USB sip/puff switch in an extremely compact package. It connects directly to the standard USB port on computers, laptops, and AAC devices and provides hardware emulation of mouse buttons or joystick buttons.

Sip/Puff Breeze

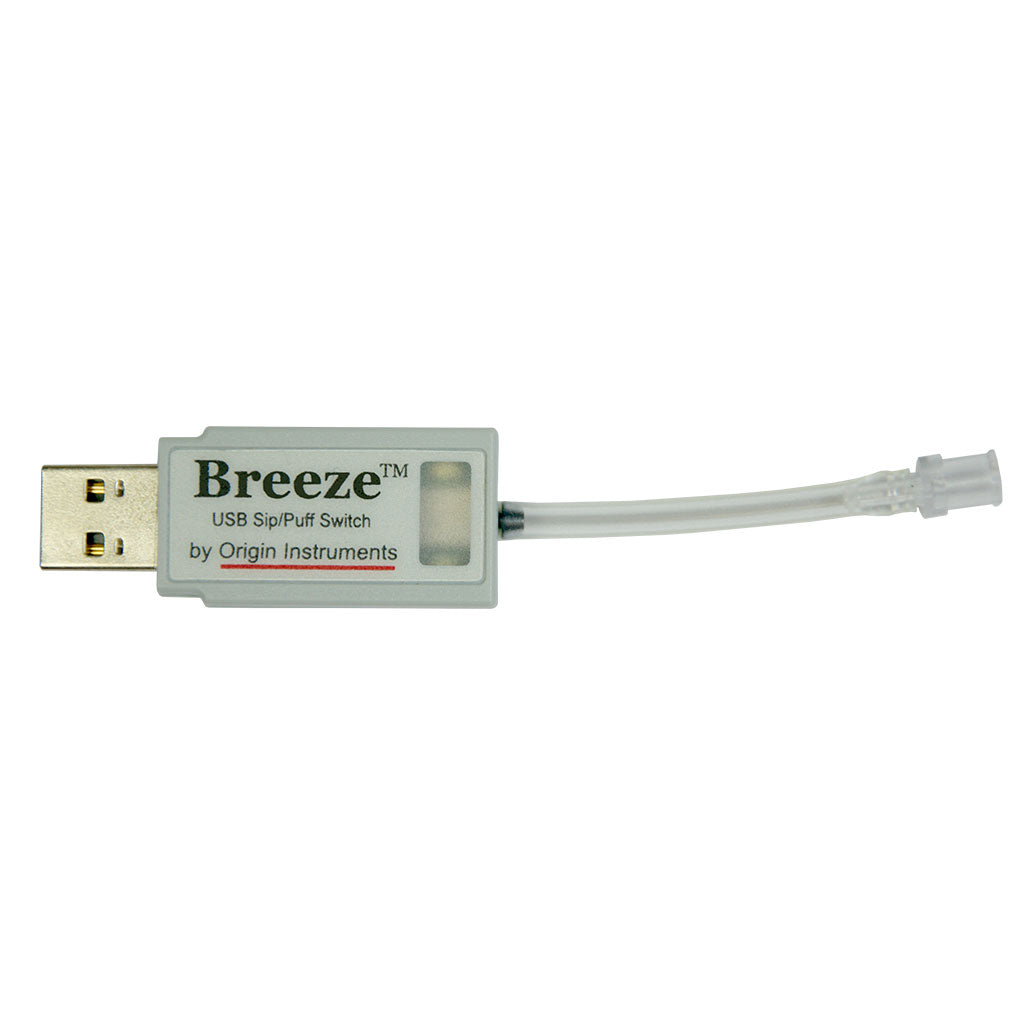

Sip/Puff Breeze is an ultra portable air pressure sensor with a USB interface for direct connection to standard USB ports on computers, laptops, and AAC devices. The electronic pressure sensor in Breeze connects to the air tube via a simple twist-on pneumatic connector and will sense a sip or puff and convert these events to mouse button clicks or joystick button presses, and pass these to the connected USB host device (typically a PC or Mac computer).

• Sip and puff pressure thresholds are approximately 7.5 cm (3-inches) water column below and above ambient pressure
  • High sensitivity setting is approximately 5 cm (2-inches) water column with increased hysteresis
• Mouse Button Emulation
• Joystick Button Emulation
• Apple iOS Switch Control Events
• Low Latency
• Works with Standard Windows, Mac and Linux USB Human Interface Device (HID) drivers. No drivers to install.
• USB Powered
• Real time gauge pressure can be reported as joystick X and Y values (± 4 kPa)
• Dimensions: 51- by 20- by 13-mm (2- by 0.8- by 0.5-inches)
• Weighs 14-grams (½-ounce)

Headset

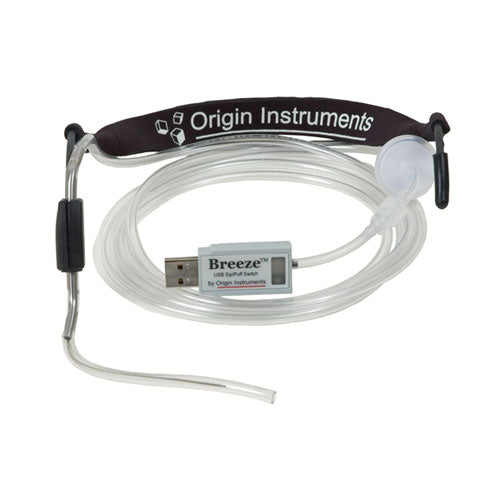

The Sip/Puff Headset is a comfortable, adjustable head frame. The padded headset slips over the ears and behind the head. A replaceable mouth tube is held in position with an integral stainless steel forming wire. The tube and wire can be bent and cut to adapt to individual needs.

Sip/Puff Breeze with Gooseneck includes

• Sip/Puff Breeze with Inline Filter
• Sip/Puff Headset
• 1.8 metre (6-foot) air tube and twist connector for attaching to Sip/Puff Breeze
• Four (4) Sip/Puff Mouth Tubes with integral stainless steel forming wire (one attached to Sip/Puff Headset)
• Documentation
• 1-year limited warranty

Replacement Mouth Tubes and Breeze Inline Filters are available.
