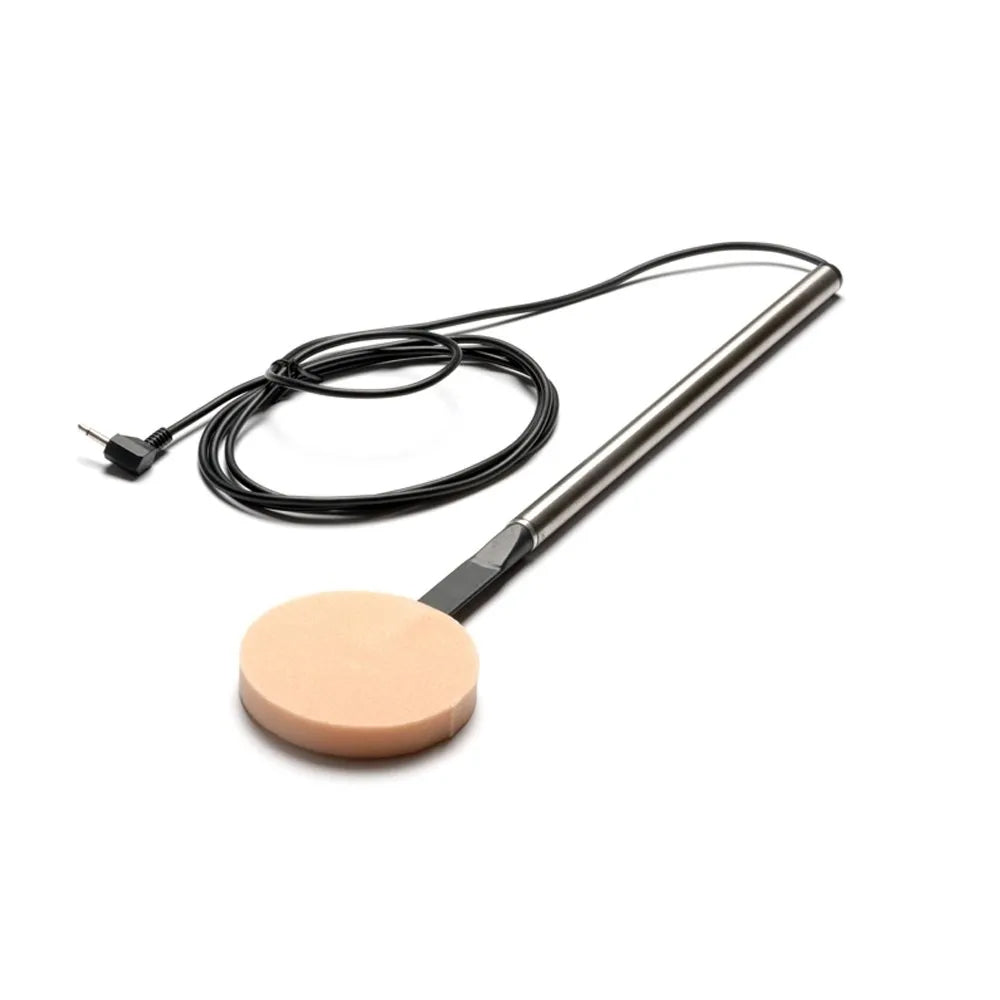

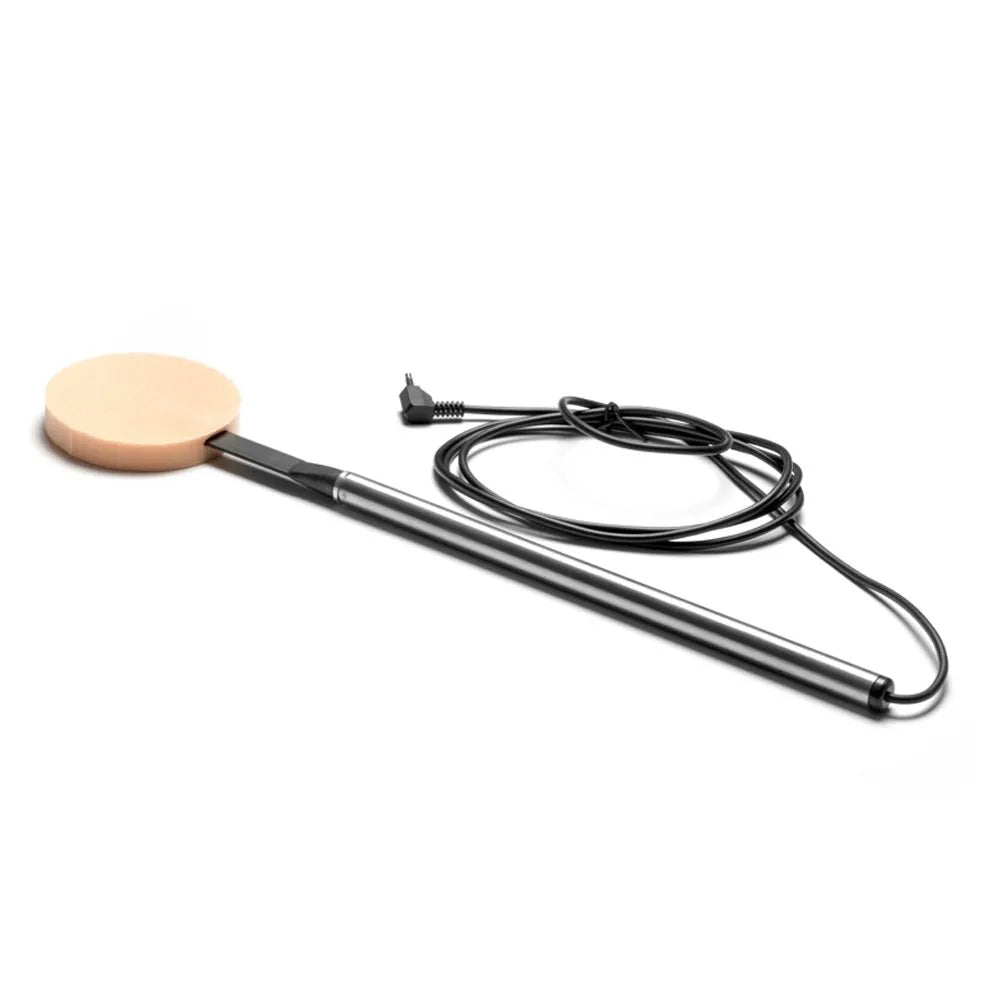

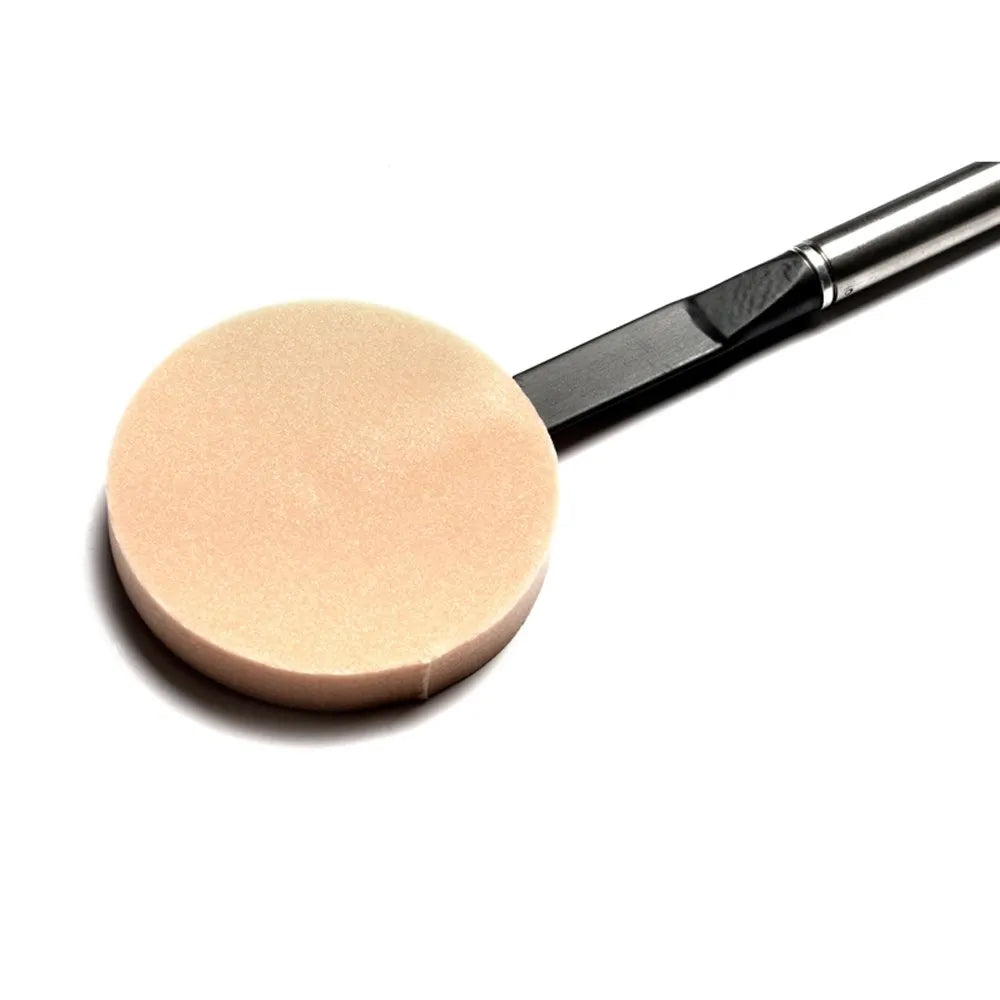

Leaf Switch

Leaf Switch is a mountable switch that can be operated by pressing lightly against the leaf in one direction. Supplied with a removable 75mm (3”) round foam pad, it offers both tactile and auditory feedback. Use it wherever you would use a standard switch. It is terminated in an industry-standard 3.5mm jack plug.

Features

• Activation force: approximately 50g (1.8 oz) in one direction.
• Mounting: Using clamp mount
• Activation area: anywhere on diameter foam pad.
• Pad dimensions: 75mm dimeter x 12.5mm
• Shaft dimensions: 225mm x 12.5mm diameter.
• Auditory feedback: Yes
• Tactile feedback: Yes
• Visual feedback: No
• Termination: 3.5mm mono jack plug
• Current: 1A at 30Vdc maximum
• Cable length: 150cm (5 feet)
• Switch type: Push to make (Normally Open)
• Battery: None
