Echo Port-A-Loop

An induction loop system that is both portable and flexible for group meetings and interviews for people with hearing aids

Rooms of up to 100m² in size may be looped with this system.

Portable Loop systems can be useful as the lower cost and increased flexibility make them ideal for smaller organisations or people on the move.

• The microphone feeds the speaker’s voice into MegaLoop amplifier
• The amplifier drives a current into the tangle free loop
• As the current flows through the cable it creates a magnetic field in the required area. Inside most hearing aids, a small coil known as a telecoil, picks up the magnetic field signal, which is amplified into a high quality sound signal delivered directly to the ear of the hearing aid user.

If the Port-A-Loop is required regularly in the same room, the 38m reel of standard loop wire can be fitted permanently, in order to save time when setting up. The tangle free wire is mounted on a tidy and is easy to run around the edge of any area when setting up your loop system, the tangle free wire is 25m in length.

Note: Care must be taken in positioning the wire to avoid the danger of tripping etc.

The loop pad offers the ideal solution for looping smaller areas such as an information counter, an office desk, or a chair, negating the need to wire the room.

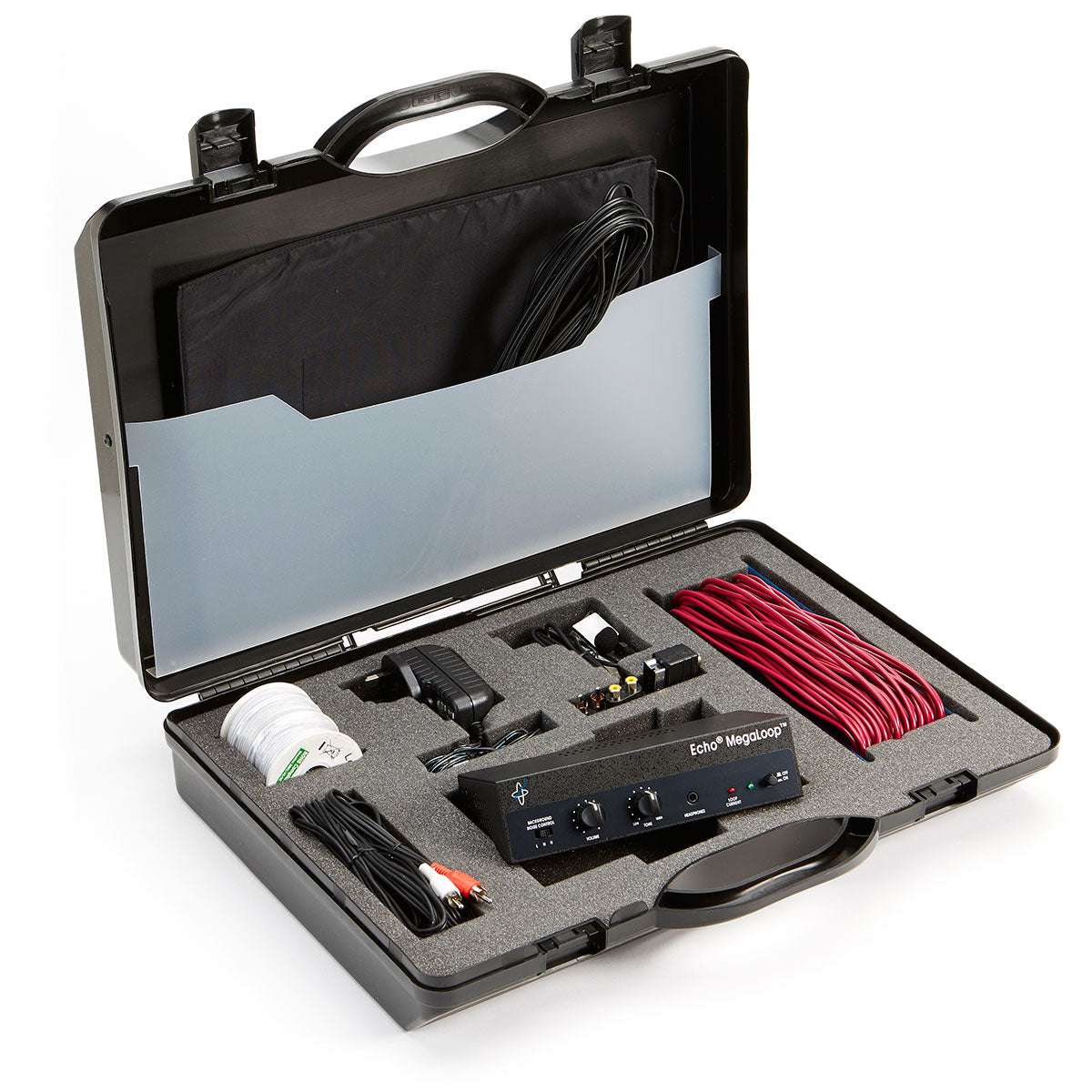

What’s included with the Echo Port-A-Loop bundle?

• Megaloop Amplifier
• Power Adapter 12V DC min. 1.5A
• Loop Pad 260mm x 350mm
• Echo Loop wire 38m
• Wire clips 50 pcs
• Tangle free wire 25m
• SCART phono plug
• Phono lead and adapters
• 3 metres extensions lead x2
• Microphone on lead with mono plug
• Plug

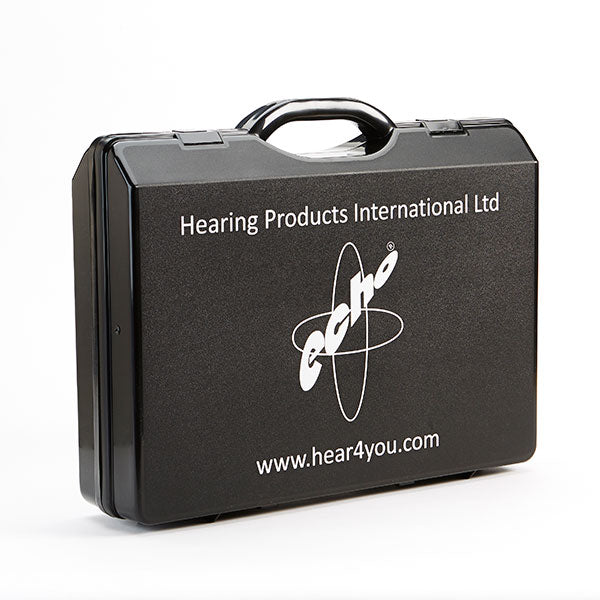

• Case
